HOW FLOWĀV WORKS
Passive Capacitive Filtering, Clearly Explained.
Flowāv connects in parallel with the electrical system to help filter harmonic content, reduce electrical noise, improve power factor, and reduce avoidable losses.
Flowāv connects in parallel with the electrical system to help filter harmonic content, reduce electrical noise, improve power factor, and reduce avoidable losses.
Nonlinear loads, motors, drives, switching electronics, HVAC, refrigeration, and control systems can create a demanding electrical environment. The value proposition is broader than one line item:

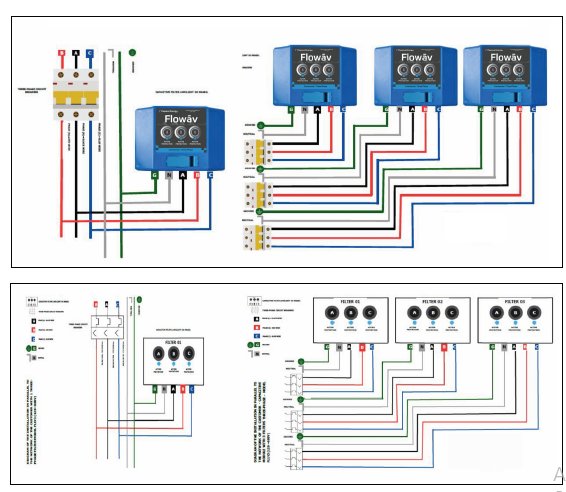

One or multiple units may be used depending on electrical service, panels, load distribution, and project requirements. Final configuration is determined by qualified professionals.
Voltage, phase, service, panels, load profile, major equipment, operating hours, and utility tariffs.
Utility and electrical data gathered over an appropriate period before installation.
Post-install measurements and utility comparisons using transparent assumptions.
Flowāv provides passive power-quality correction through capacitive filtering. It is installed in parallel and is designed to improve the electrical environment without acting as a relay.
These are the core environmental and installation considerations most owners, engineers, and installers need to review before deployment.
120-600V AC
Supports single-phase, two-phase, and three-phase systems. The operating voltage must stay within this range to avoid malfunction or damage.
45-65 Hz
Designed for common 50 Hz and 60 Hz utility systems and tolerant of minor fluctuations within that band.
DIN rail (35mm) or panel mount
DIN rail is typical for control cabinets. Panel mounting can be used where rail infrastructure is not available.
-4°F to 140°F (-20°C to +60°C)
Install in an enclosure and avoid direct sunlight or nearby heat sources to support reliable operation.

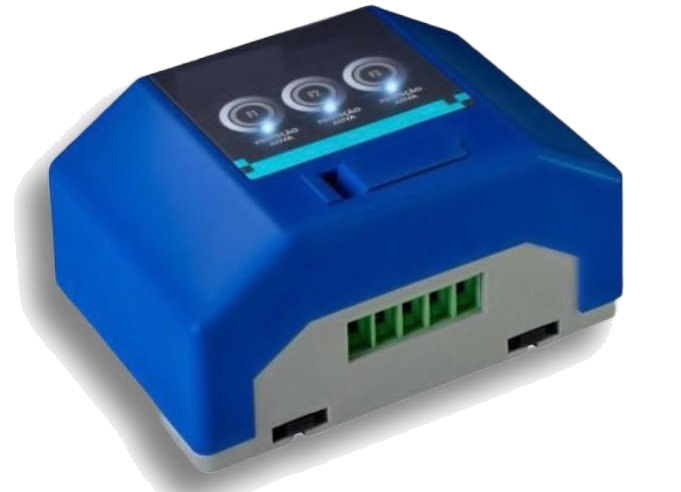

6.5″ × 4.5″ × 3.3″ · approx. 1.9 lbs (27 oz)
Useful for enclosure planning, shipping, and confirming that DIN rail or panel mounting is properly supported.
IP55
Protected against harmful dust ingress and low-pressure water jets. Install inside a UL Certified electrical enclosure; use an IP65-rated enclosure when the application requires higher dust/water resistance.
Monthly electricity use is a useful starting point. Final sizing still depends on voltage, phase, panel configuration, load distribution, operating hours, and project requirements.
Homes and small offices with a focused set of major electrical loads.
Offices, retail locations, multifamily properties, and other commercial applications.
Industrial, enterprise, and higher-load properties requiring broader coverage.
Multiple panels, distributed loads, and larger facilities may require more than one unit.
Flowāv uses passive capacitive filtering with no moving parts, firmware, or active control system. The system is designed for long-term operation when correctly sized, installed, and protected for the environment.
The objective is not to replace connected equipment, but to improve the quality of the electrical environment in which it operates.
